The Role and Nucleophilicity of Chloride and Bromide Nucleophiles in Both Sn1 and Sn2 Substitution Reactions with Tert-Butanol and 1-Butanol

The Role and Nucleophilicity of Chloride and Bromide Nucleophiles in Both Sn1 and Sn2 Substitution Reactions with Tert-Butanol and 1-Butanol

The Role and Nucleophilicity of Chloride and Bromide Nucleophiles in Both Sn1 and Sn2 Substitution Reactions with Tert-Butanol and 1-Butanol
By: Rachel Wolfson*, Louis Kuo, Lisa Holmes, Luciano Santino, Cooper Jamieson



ABSTRACT
The purpose of this experiment is to determine the relative nucleophilicities of chloride and bromide in both an Sn1 and Sn2 reaction. It also investigates rate law kinetics and solvent effects. Tert-butanol and 1-butanol were reacted separately with equal mixtures of the nucleophiles in order to facilitate both types of substitution reactions, proton NMR was done to investigate the nature of the products. In each case the proton NMR confirmed two products were formed, though the ratio of the two products differed between the two substitution reactions. These results indicate that bromide is the stronger nucleophile. The 8:1 ratio of alkyl bromide to alkyl chloride products in the Sn2 reaction indicated that chloride’s concentration was diminished via caging solvent effects. Bromide’s greater nucleophilicity, aqueous solvent effects, (wherein chloride is caged by water), and rate law kinetics all contributed to a difference in product ratios for both substitution reactions.



INTRODUCTION
Nucleophilic substitution reactions are influenced by a variety of factors. Substitution reactions are understood to occur via two separate mechanisms dependent on conditions. An Sn1 substitution reaction is a two-step process that goes through a planar carbocation intermediate. Since Sn1 forms this planar intermediate, it allows nucleophile attack from the front or back of the substrate molecule. This mechanism is favored when the carbocation formed from the substrate is tertiary and the solvent is polar protic. The rate law mechanism for Sn1 is only dependent on the substrate concentration. An Sn2 substitution reaction is a one step process wherein the leaving group leaves simultaneously with a nucleophile attack, forcing only a backside approach due to steric hindrances. The Sn2 reaction is known to be favored in conditions with primary substrates, a strong nucleophile, and polar aprotic solvents. The rate law mechanism for an Sn2 is dependent on both substrate and nucleophile concentration.

This experiment specifically addresses two features of substitution reactions. First, it compares the nucleophilic nature of chloride and bromide, and second, it compares the effects caused by the structure of the substrate. By having the nucleophiles compete in the same reaction mixture, an NMR analysis will be able to reveal the proportion of nucleophilic attacks that occurred with bromine compared to chloride. In using 1-butanol, a linear primary substrate, and tert-butyl alcohol, a t-shaped tertiary substrate, we can expect to see both an Sn2 and Sn1 reaction respectively. Schemes 1, 2, and 3 outline the Sn1 reaction mechanism in detail. Scheme 4 details the Sn2 mechanism with 1-butanol. Formation of t-butyl bromide and t-butyl chloride is expected from the t-butyl alcohol, while 1-bromobutane and 1-chlorobutane will be synthesized from the 1-butanol.

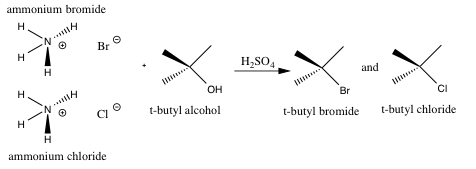

Scheme 1. The overall Sn1 reaction for the formation of both t-butyl chloride and t-butyl bromide from tert-butyl alcohol and the reaction mixture

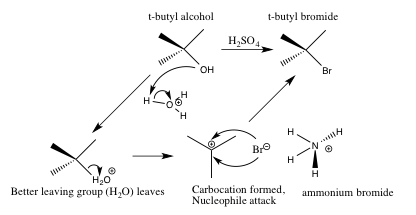

Scheme 2. Detailed Sn1 mechanism for the formation of t-butyl bromide from tert-butyl alcohol and the reaction mixture (ammonium bromide and ammonium chloride in sulfuric acid (45ml, ~7.5M))

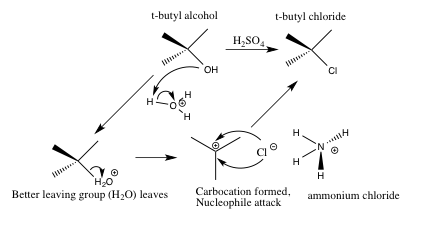

Scheme 3. Detailed Sn1 mechanism for the formation of t-butyl chloride from tert-butyl alcohol and the reaction mixture (ammonium bromide and ammonium chloride in sulfuric acid (45ml, ~7.5M))

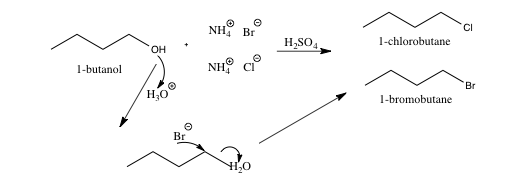

Scheme 4. Sn2 mechanism for the formation of butyl bromide and butyl chloride from butyl alcohol and the reaction mixture (ammonium bromide and ammonium chloride in sulfuric acid (45ml, ~7.5M))

Further, it is anticipated that in an Sn2 reaction, bromide will attack the substrate to a greater extent than chloride, since the rate of this reaction is dependent on both the substrate and nucleophile concentration, and bromide is a stronger nucleophile. The importance of this experiment is relative. It reinforces previous strongly held beliefs about the nature of these mechanisms in specific conditions, allows students to justify this for themselves, and through repetition, contributes to that paradigm of thought in organic chemistry continuously. It is significant in that knowledge of and familiarity with these mechanisms is fruitful for more specific monetary or intellectual pursuits.



EXPERIMENTAL METHODS

Tert-butanol and 1-butanol were reacted separately with equal mixtures of nucleophiles.

Preparation of the Reaction Mixture

To prepare the reaction medium, ammonium chloride (4.7482g, 0.04780mol) and ammonium bromide (8.7525g, 0.04780mol) of were mixed with 45ml of ~7.5 M sulfuric acid (H2SO4). This mixture was heated to ensure the compounds dissolved fully.

Synthesis of t-Butyl Chloride and t-Butyl Bromide from tert-Butyl Alcohol

A portion of the reaction mixture (17.5 mL) and t-butyl alcohol (2.5 mL) were combined. The organic and aqueous layers were separated. Sodium bicarbonate (0.2564 g) was added to this organic product to neutralize any remaining acid. After the solution turned clear, a proton NMR analysis was done.

1H NMR (CDCl3/TMS-300MHz): δ 1.62 (s, 9H), 1.79 (s, 9H)



Synthesis of 1-Bromobutane and 1-Chlorobutane from 1-Butanol

The remaining portion of the reaction mixture (27.5 mL) and 1-butanol (2.5 mL) were combined. This solution was heated at reflux for approximately one hour. After cooling, the organic and aqueous layers were separated. Sodium sulfate (0.2508 g) was added to this organic product to remove any excess water. After the solution turned clear, a proton NMR analysis was done.

1H NMR (CDCl3/TMS-300MHz): δ 0.93 (t, 3H), 1.45 (m, 2H), 1.84 (m, 2H), 2.16 (d, 2H), 3.41 (t, 2H), 3.53 (t, 2H)



RESULTS AND DISCUSSION

In the synthesis of t-butyl chloride and t-butyl bromide, an Sn1 reaction occurs. In this substitution reaction, the proton NMR in Figure 1 reveals only two singlet peaks, indicating all the protons are chemically equivalent, as they would be in a tert-butyl formation. The most deshielded protons in (CH3)3CCl appear upfield from the most deshielded protons in (CH3)3CBr. There is a similar integral amount for both the bromide and chloride attack – the percentage of each alkyl halide in the reaction mixture were 51.3% and 48.7% respectively. This indicates that both the bromide and chloride ion appear to have a mostly equal attack rate, though the bromide’s is slightly higher. Since the product with bromide has a slightly higher percentage for an Sn1 reaction whose rate is not dependent on nucleophile concentration, it is possible to conclude that bromide is a stronger nucleophile.

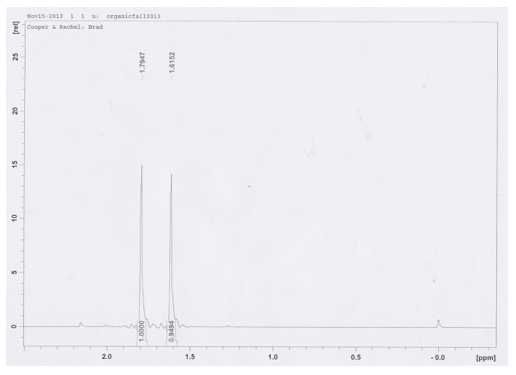

Figure 1. Proton NMR of the Sn1 reaction synthesis products t-butyl chloride and t-butyl bromide from tert-butyl alcohol

The product distribution for the reaction mixture with 1-butanol differed greatly. In Figure 2, the most deshielded 1-chlorobutane protons appear downfield from the most deshielded protons in 1-bromobutane.  The integrals are varied, indicating 10.7% of the product was 1-chlorobutane and 89.3% was 1-bromobutane. This may be explained in part by the previous conclusion that bromide is a stronger nucleophile; it is larger than chloride, their radii being 182 pm and 167 pm respectively. This makes it more polarizable as the electron cloud can be distorted over a larger area – which in turn makes it more reactive. However, the main reason is likely that chloride, being smaller and having greater electronegativity, is more readily caged by water in the solvent than bromide. This inhibits it binding to the substrate electrophile. Even though in each reaction there is initially an equal concentration of both nucleophiles, rate law may explain this large difference in product distribution between the separate Sn1 and Sn2 reactions. The Sn2 reaction rate law is dependent on the nucleophile concentration, while the Sn1 reaction rate is only dependent on the concentration of the alcohol. As mentioned earlier, the caging of the chloride ion by the solvent may make it inaccessible and decrease its concentration availability. This has no effect on the product distribution for Sn1, but has a huge effect on the ratio for the Sn2 reaction that is dependent on nucleophile concentration.

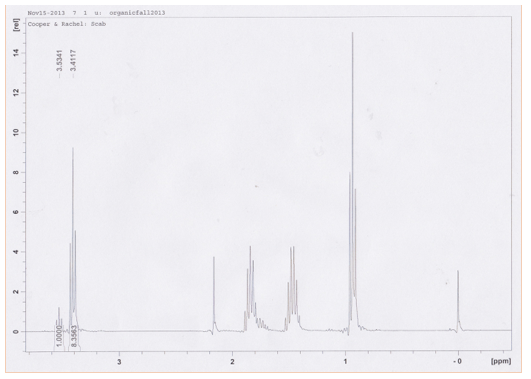

Figure 2. Figure 1. Proton NMR of the Sn2 reaction synthesis products 1-bromobutane and 1-chlorobutane from 1-butanol.

CONCLUSION

There are many factors to consider in substitution reactions, this includes but is not limited to the specific mechanism, rate law, solvent effects, and nucleophilicity. The proton NMR data here readily address the nucleophilicity of chloride and bromide, and underscores these ions’ functions in both Sn1 and Sn2 reactions with aqueous solvent conditions. These results indicate that bromide is the stronger nucleophile due to its slightly higher percentage in the Sn1 reaction. Bromide’s greater nucleophilicity, aqueous solvent effects, (wherein chloride was caged by water), and rate law kinetics all contributed to an 8:1 difference in product ratios for the Sn2 reaction.



REFERENCES

Holmes, L. Experiment 5 Prelab Lecture Presentation, Lewis & Clark College, Portland OR. Personal
communication and powerpoint, 2013

Klein, D.R. Substitution Reactions, Organic Chemistry, 1st Edition; John Wiley: Hoboken, NJ, 2011

Kuo, L. Lewis & Clark College, Portland OR. Personal communication, 2013

Lewis & Clark College Organic Chemistry Lab Manual, Portland OR, 2013

Santino, L. Lewis & Clark College, Portland OR. Personal communication, 2013
